Description
About this product
Best in class cutting capacity.

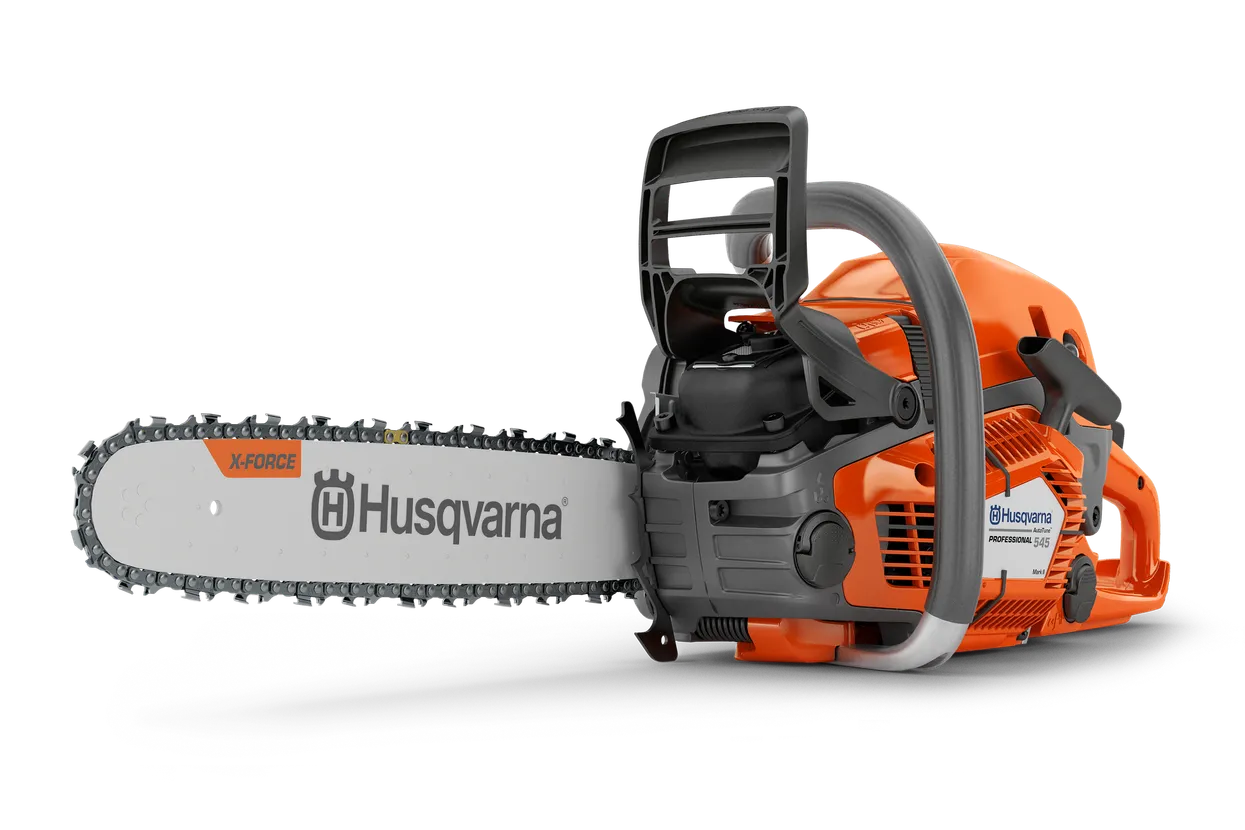

The second generation of Husqvarna’s 545 chainsaw is a 50cc unit that’s ready for your felling, limbing and bucking of small and midsize trees. Designed for professional forestry and tree care crews, this durable saw has improved power and a slimmed-down design. A host of innovative features guarantee comfortable and efficient operation, season after season.
Spacifications
|
20″ SN .325″ 1,3 mm SP33G
967 69 06‑28
|
16″ SN .325″ 1,5 mm S35G
967 69 06‑16
|
18″ SN .325″ 1,5 mm S35G
967 69 06‑18
|
20″ SN .325″ 1,3 mm SP33G
967 69 06‑02
|
16″ SN .325″ 1,3 mm SP33G
967 69 06‑36
|
18″ SN .325″ 1,3 mm SP33G
967 69 06‑38
|
20″ SN .325″ 1,3 mm SP33G
967 69 06‑40
|
|
|---|---|---|---|---|---|---|---|
|
Engine
|
|||||||
Output shaft power1 |
3.6 hp
|
3.6 hp
|
3.6 hp
|
3.6 hp
|
3.6 hp
|
3.6 hp
|
3.6 hp
|
Cylinder displacement |
50.1 cm³
|
50.1 cm³
|
50.1 cm³
|
50.1 cm³
|
50.1 cm³
|
50.1 cm³
|
50.1 cm³
|
Torque, max. |
2.95 Nm
|
2.95 Nm
|
2.95 Nm
|
2.95 Nm
|
2.95 Nm
|
2.95 Nm
|
2.95 Nm
|
Torque, max. at rpm |
7,200 rpm
|
7,200 rpm
|
7,200 rpm
|
7,200 rpm
|
7,200 rpm
|
7,200 rpm
|
7,200 rpm
|
Chain speed at max power |
62.7 fts
|
62.7 fts
|
62.7 fts
|
62.7 fts
|
62.7 fts
|
62.7 fts
|
62.7 fts
|
Clutch engagement speed (±120) |
3,900 rpm
|
3,900 rpm
|
3,900 rpm
|
3,900 rpm
|
3,900 rpm
|
3,900 rpm
|
3,900 rpm
|
Electrode gap |
0.02 in
|
0.02 in
|
0.02 in
|
0.02 in
|
0.02 in
|
0.02 in
|
0.02 in
|
Idling speed |
2,800 rpm
|
2,800 rpm
|
2,800 rpm
|
2,800 rpm
|
2,800 rpm
|
2,800 rpm
|
2,800 rpm
|
Ignition module air gap |
0.01 in
|
0.01 in
|
0.01 in
|
0.01 in
|
0.01 in
|
0.01 in
|
0.01 in
|
Maximum power speed |
9,900 rpm
|
9,900 rpm
|
9,900 rpm
|
9,900 rpm
|
9,900 rpm
|
9,900 rpm
|
9,900 rpm
|
Oil pump type |
Adjustable flow, no flow at idle
|
Adjustable flow, no flow at idle
|
Adjustable flow, no flow at idle
|
Adjustable flow, no flow at idle
|
Adjustable flow, no flow at idle
|
Adjustable flow, no flow at idle
|
Adjustable flow, no flow at idle
|
Spark Plug |
NGK CMR6H
|
NGK CMR6H
|
NGK CMR6H
|
NGK CMR6H
|
NGK CMR6H
|
NGK CMR6H
|
NGK CMR6H
|
|
20″ SN .325″ 1,3 mm SP33G
967 69 06‑28
|
16″ SN .325″ 1,5 mm S35G
967 69 06‑16
|
18″ SN .325″ 1,5 mm S35G
967 69 06‑18
|
20″ SN .325″ 1,3 mm SP33G
967 69 06‑02
|
16″ SN .325″ 1,3 mm SP33G
967 69 06‑36
|
18″ SN .325″ 1,3 mm SP33G
967 69 06‑38
|
20″ SN .325″ 1,3 mm SP33G
967 69 06‑40
|
|
|---|---|---|---|---|---|---|---|
|
Equipment
|
|||||||
Recommended bar length, min |
13 in
|
13 in
|
13 in
|
13 in
|
13 in
|
13 in
|
13 in
|
Pitch |
.325″
|
.325″
|
.325″
|
.325″
|
.325″
|
.325″
|
.325″
|
Recommended bar length, max |
20 in
|
20 in
|
20 in
|
20 in
|
20 in
|
20 in
|
20 in
|
Chain type |
SP33G
|
S35G
|
S35G
|
SP33G
|
SP33G
|
SP33G
|
SP33G
|
Bar length |
50 cm
|
40 cm
|
45 cm
|
50 cm
|
40 cm
|
45 cm
|
50 cm
|
Bar length (inch) |
20 in
|
16 in
|
18 in
|
20 in
|
16 in
|
18 in
|
20 in
|
Sprocket type |
Rim 7
|
Rim 7
|
Rim 7
|
Rim 7
|
Rim 7
|
Rim 7
|
Rim 7
|
Gauge |
.050″
|
.058″
|
.058″
|
.050″
|
.050″
|
.050″
|
.050″
|
|
20″ SN .325″ 1,3 mm SP33G
967 69 06‑28
|
16″ SN .325″ 1,5 mm S35G
967 69 06‑16
|
18″ SN .325″ 1,5 mm S35G
967 69 06‑18
|
20″ SN .325″ 1,3 mm SP33G
967 69 06‑02
|
16″ SN .325″ 1,3 mm SP33G
967 69 06‑36
|
18″ SN .325″ 1,3 mm SP33G
967 69 06‑38
|
20″ SN .325″ 1,3 mm SP33G
967 69 06‑40
|
|
|---|---|---|---|---|---|---|---|
|
Dimensions
|
|||||||
Weight (excl. cutting equipment) |
11.7 lbs
|
11.7 lbs
|
11.7 lbs
|
11.7 lbs
|
11.7 lbs
|
11.7 lbs
|
11.7 lbs
|
|
20″ SN .325″ 1,3 mm SP33G
967 69 06‑28
|
16″ SN .325″ 1,5 mm S35G
967 69 06‑16
|
18″ SN .325″ 1,5 mm S35G
967 69 06‑18
|
20″ SN .325″ 1,3 mm SP33G
967 69 06‑02
|
16″ SN .325″ 1,3 mm SP33G
967 69 06‑36
|
18″ SN .325″ 1,3 mm SP33G
967 69 06‑38
|
20″ SN .325″ 1,3 mm SP33G
967 69 06‑40
|
|
|---|---|---|---|---|---|---|---|
|
Sound and noise
|
|||||||
Sound pressure level at operators ear |
106 dB(A)
|
106 dB(A)
|
106 dB(A)
|
106 dB(A)
|
106 dB(A)
|
106 dB(A)
|
106 dB(A)
|
Sound power level, guaranteed (LWA) |
115 dB(A)
|
115 dB(A)
|
115 dB(A)
|
115 dB(A)
|
115 dB(A)
|
115 dB(A)
|
115 dB(A)
|
Sound power level, measured |
113 dB(A)
|
113 dB(A)
|
113 dB(A)
|
113 dB(A)
|
113 dB(A)
|
113 dB(A)
|
113 dB(A)
|
|
20″ SN .325″ 1,3 mm SP33G
967 69 06‑28
|
16″ SN .325″ 1,5 mm S35G
967 69 06‑16
|
18″ SN .325″ 1,5 mm S35G
967 69 06‑18
|
20″ SN .325″ 1,3 mm SP33G
967 69 06‑02
|
16″ SN .325″ 1,3 mm SP33G
967 69 06‑36
|
18″ SN .325″ 1,3 mm SP33G
967 69 06‑38
|
20″ SN .325″ 1,3 mm SP33G
967 69 06‑40
|
|
|---|---|---|---|---|---|---|---|
|
Vibration
|
|||||||
Equivalent vibration level (ahv, eq) rear handle |
4.6 m/s²
|
4.6 m/s²
|
4.6 m/s²
|
4.6 m/s²
|
4.6 m/s²
|
4.6 m/s²
|
4.6 m/s²
|
Equivalent vibration level (ahv, eq) front handle |
4 m/s²
|
4 m/s²
|
4 m/s²
|
4 m/s²
|
4 m/s²
|
4 m/s²
|
4 m/s²
|
|
20″ SN .325″ 1,3 mm SP33G
967 69 06‑28
|
16″ SN .325″ 1,5 mm S35G
967 69 06‑16
|
18″ SN .325″ 1,5 mm S35G
967 69 06‑18
|
20″ SN .325″ 1,3 mm SP33G
967 69 06‑02
|
16″ SN .325″ 1,3 mm SP33G
967 69 06‑36
|
18″ SN .325″ 1,3 mm SP33G
967 69 06‑38
|
20″ SN .325″ 1,3 mm SP33G
967 69 06‑40
|
|
|---|---|---|---|---|---|---|---|
|
Lubricant
|
|||||||
Oil tank volume |
0.68 US pint
|
0.68 US pint
|
0.68 US pint
|
0.68 US pint
|
0.68 US pint
|
0.68 US pint
|
0.68 US pint
|
Lubricant type (Engine) |
Husqvarna 2 stroke or equiv. at 50:1
|
Husqvarna 2 stroke or equiv. at 50:1
|
Husqvarna 2 stroke or equiv. at 50:1
|
Husqvarna 2 stroke or equiv. at 50:1
|
Husqvarna 2 stroke or equiv. at 50:1
|
Husqvarna 2 stroke or equiv. at 50:1
|
Husqvarna 2 stroke or equiv. at 50:1
|
|
20″ SN .325″ 1,3 mm SP33G
967 69 06‑28
|
16″ SN .325″ 1,5 mm S35G
967 69 06‑16
|
18″ SN .325″ 1,5 mm S35G
967 69 06‑18
|
20″ SN .325″ 1,3 mm SP33G
967 69 06‑02
|
16″ SN .325″ 1,3 mm SP33G
967 69 06‑36
|
18″ SN .325″ 1,3 mm SP33G
967 69 06‑38
|
20″ SN .325″ 1,3 mm SP33G
967 69 06‑40
|
|
|---|---|---|---|---|---|---|---|
|
Emission
|
|||||||
Exhaust emissions (CO₂ EU V)2 |
844 g/kWh
|
844 g/kWh
|
844 g/kWh
|
844 g/kWh
|
844 g/kWh
|
844 g/kWh
|
844 g/kWh
|
HUSQVARNA 545 Mark II – 967 69 06‑28
Included
-
Nose type
Sprocket nose
-
Spikes
Mounted
-
Chain type
SP33G
-
Bar length (inch)
20 in
